6 Lane Interfold 6000 Sheets / Min Paper Towel Making Machine

Name: 6 Lane Interfold 6000 Sheets Min Paper Towel Making Machine
Brand: YU SHENG DA
Price: 1 USD

Quality 6 Lane Interfold 6000 Sheets / Min Paper Towel Making Machine wholesale

Brand Name : YU SHENG DA

Model Number : YD-PT-I

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C, T/T

Delivery Time : 50 work days after down payment

Packaging Details : Wooden Packing

Fold Type : InterFold

Speed : 6000 Sheets Per Min

Embossing : Steel to Steel

Frequency Converter : Delta

Pneumatic Parts : AIRTAC

Photoelectrical switch (magic eye) : Omron

Voltage : 380V, 50 HZ OR CUSTOMERIZED

Dimension(l*w*h) : 6200*2000*1800mm

After-sales service provided : Engineers available to service machinery overseas, Video technical support, Online support, Field maintenance and repair service, Field installation

Condition : NEW

Warranty : One year

Power(w) : 7.5KW

Product type : Paper Towel Machine

Processing type : Paper Towel Machine

Contact Now

Interfold Paper Towel Making Machine , Six Lane Towel Folding Machine
Specification for V FOLD Paper Towel Machine_20210...

Description

Interfold Paper Towel Making Embossing Lamination Machine Six Lanes is used to make Inter Fold Hand Towel with embossing and cutting off the towel paper .The folding of product is “Interfold” type folding .
It used PLC computer programming technology, variable frequency speed
control, human-machine interface operating system; CVT transmission ratio before
and after, to adapt to pull the paper to improve the tension and the finished productsuniformity and

beautiful.

Function and Features

1. Automatic counting sub-bit row of the output
2. Spiral blade shear, vacuum adsorption folding
3. Unwinding stepless speed regulation, can be adapted to high and low tension of the base paper
4. Electronically Controlled Pneumatic, easy to operate,two steel to rubber embossing,edge press device
5. Product width of the range, user-friendly marketing

Specification:

Model	N-2L/3L/4L/5L/6L
Finished Products Size	230L*230±2MM
Raw Material Width	480mm	690mm	990mm	1150mm
Raw Material Core Diameter	76.2mm
Speed	0-100m/min (depending on the machine model)
Power	Frequency conversion speed regulator
Programmable controller	PLC computer controller
Folding Type	Vacuum suction N fold
Transmission unit	Timing Belt
Counter	Ink Marked
Embossing Unit	Steel to steel
Slitting Unit	Pneumatic dot slitting
Pneumatic System	3HP Air Compressoor, mini air pressure 5kg/cm2pm (Provider by customer)
Total Power	11kw	15kw	15kw	22kw
Dimension	4000(1700-2500) 1900mm ,Depend on the size and configure
weight	2-5 tons, Depend on the size and configure

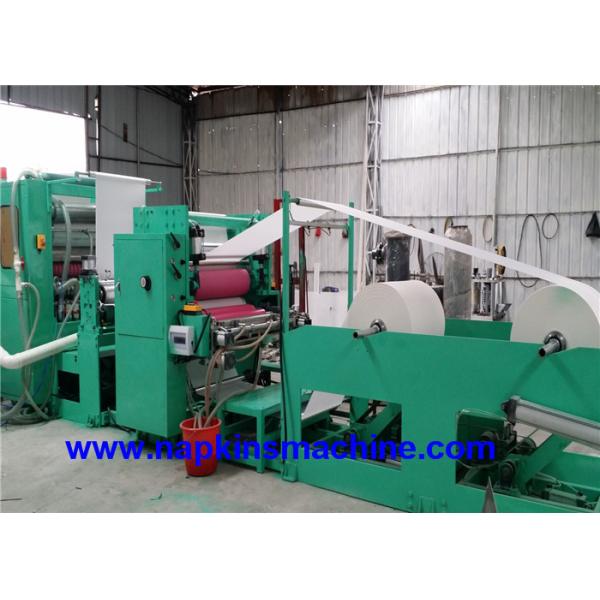

Machine Detail Pictures:

6 Lane Interfold 6000 Sheets / Min Paper Towel Making Machine

Finished Products Pictures:

Optional machine:

Optional Hand Towel Bagging Machine:

Production speed: 6-9 bagss/min

Packing size: length 1150 mm, width 70 mm

Power: 200W 380V 50Hz

Dimensions: 1500*850*700mm
